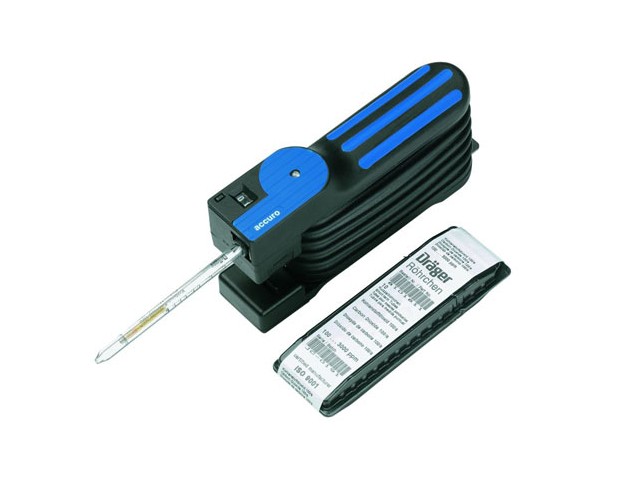

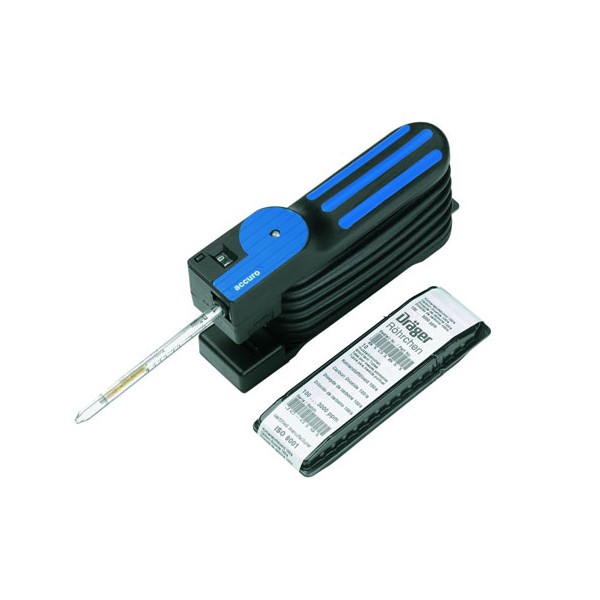

Dräger Accuro je sistem za točkovno merjenje koncentracije plina. Sistem ni namenjen prepoznavanju plina ampak samo za merjenje koncentracije plina, ki ga poznamo.

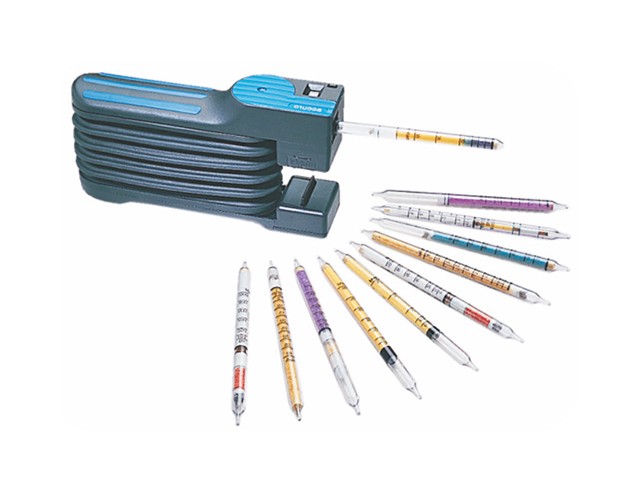

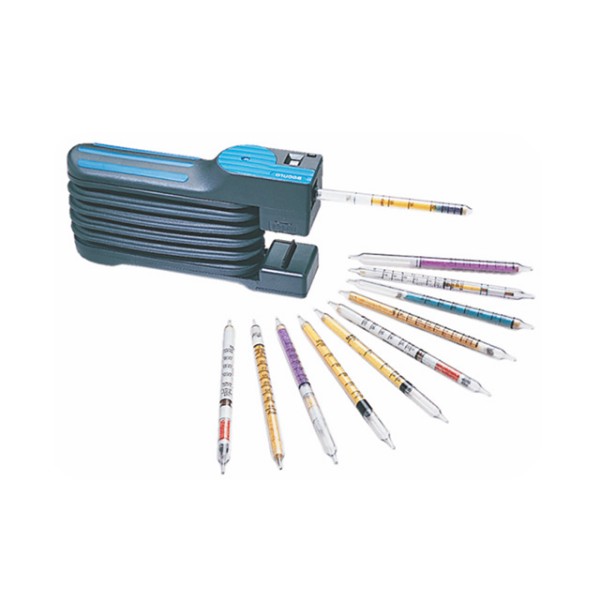

Za delovanje potrebujemo ročno črpalko Accuro ter testno cevčico Dräger za plin katerega želimo izmeriti.
1. Iz Dräger tesne cevčice odstranimo prednji in zadnji stekleni del. Za pomoč pri odstranitvi stekla je na spodnjem delu naprave Accuro nameščeno keramično rezilo.
2. V napravo Accuro pravilno vstavimo cevčico za plin katerega koncentracijo želimo izmeri.

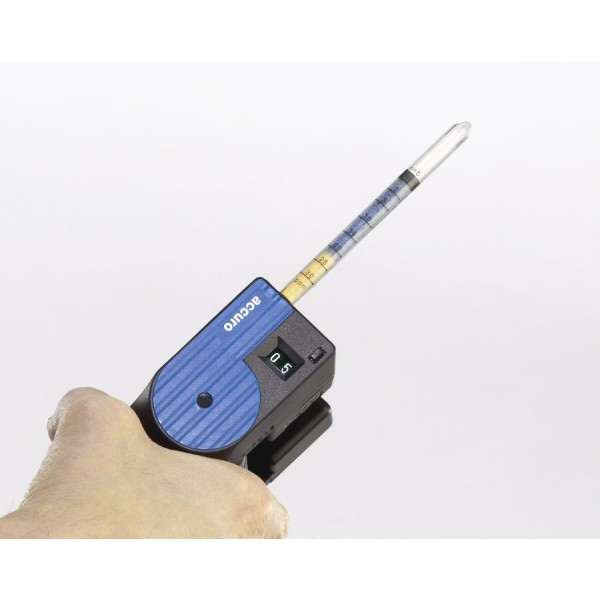

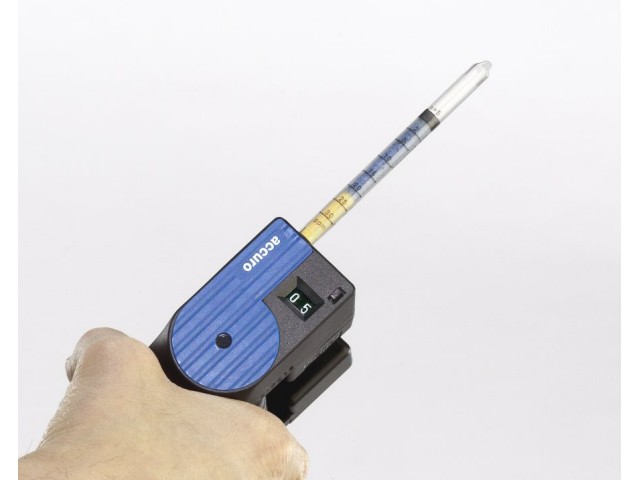

3. Na embalaži testnih cevčic je zapisano koliko stiskov meha je potrebno za določeno vrsto plina. Da bo število stiskov meha pravilno je na Accuro napravi nameščen števec stiskov. Pred začetkom preverimo, da je ta števec poenostavljen.
4. Pričnemo s stiskanjem meha in smo pri tem pozorni na števec, da bomo upravili pravo število stiskov meha. Pri tem smo pozorni tudi na indikator vakuuma v napravi.
5. Po zadostnem številu stiskov meha, na Dräger cevčici odčitamo koncentracijo plina s pomočjo barvnega indikatorja.
ŠT. IZDELKA |
DRÄGER CEVČICA |
RAZPON MERJENJA KONCENTRACIJE |
6726665 |
Acetaldehyde 100/a |
100 - 1,000 ppm |
6722101 |
Acetic Acid 5/a |
5 - 80 ppm |
8103381 |
Acetone 40/a |
40 - 800 ppm (5 tests per box) |
CH22901 |
Acetone 100/b |
100 - 12,000 ppm |
8101121 |
Acid Test |
Qualitative |
6728591 |
Acrylonitrile 0.5/a |
0.5 - 20 ppm (5 tests per box) |
CH25301 |
Air Current (Smoke Tubes) |
N/A |
8101631 |
Alcohol 25/a |
25 - 5,000 ppm |
CH29701 |
Alcohol 100/a |
100 - 3,000 ppm |
8101061 |
Amine Test |
Qualitative |
8101711 |
Ammonia 0.25/a |
0.25 - 3 ppm |
6733231 |
Ammonia 2/a |
2 - 30 ppm |
CH20501 |
Ammonia 5/a |
5 - 700 ppm (SEI Certified) |
8101941 |
Ammonia 5/b |
2.5 - 100 ppm |
CH31901 |
Ammonia 0.5%/a |
0.05 - 10 Vol.% |
6733171 |
Aniline 0.5/a |
0.5 - 10 ppm |
CH20401 |
Aniline 5/a |
1 - 20 ppm |
CH25001 |
Arsine 0.05/a |
0.05 - 60 ppm |
6728561 |
Benzene 0.5/a |
0.5 - 10 ppm |
8101841 |
Benzene 0.5/c (Specific) |
0.5 - 10 ppm (5 tests per box) |
8101231 |
Benzene 2/a |
2 - 60 ppm (5 tests per box) |
6728071 |
Benzene 5/b |
5 - 50 ppm |
8101741 |
Benzene 15/a |
15 - 420 ppm |
8101811 |
Carbon Dioxide 100/a |
100 - 3,000 ppm |
CH23501 |
Carbon Dioxide 0.1%/a |
0.1 - 6 Vol.% (SEI Certified) |
8101051 |
Carbon Dioxide 1% / a-D |
1 - 30 Vol.% x h |
CH31401 |
Carbon Dioxide 0.5%/a |
0.5 - 10 Vol.% |
CH25101 |
Carbon Dioxide 1%/a |
1 - 20 Vol.% |
CH20301 |
Carbon Dioxide 5%/A |
5 - 60 Vol.% |
8101891 |
Carbon Disulfide 3/a |
3 - 95 ppm |
CH23201 |
Carbon Disulfide 30/a |
32 - 3,200 ppm |
6733051 |
Carbon Monoxide 2/a |
2 - 300 ppm |
CH25601 |
Carbon Monoxide 5/c |
5 - 700 ppm (SEI Certified) |
CH19701 |
Carbon Monoxide 8/a |
8 - 150 ppm |
CH20601 |
Carbon Monoxide 10/b |
10 - 3,000 ppm |
CH29901 |
Carbon Monoxide 0.3%/b |
0.3 - 7 Vol% |
CH24101 |
Carbon Pretube |
N/A |
8103501 |
Carbon Tetrachloride 0.1/a |
0.1 - 5 ppm |
8101021 |
Carbon Tetrachloride 1/a |
1 - 15 ppm (5 tests per box) |
CH27401 |
Carbon Tetrachloride 5/c |
5 - 50 ppm |
CH24301 |
Chlorine 0.2/a |
0.2 - 30 ppm |
6728411 |
Chlorine 0.3/b |
0.3 - 10 ppm |
CH20701 |
Chlorine 50/a |
50 - 500 ppm |
8103491 |
Chlorine Dioxide 0.025/a |
0.025 - 3 ppm |
6728761 |
Chlorobenzene 5/a |
5 - 200 ppm (5 tests per box) |
6728861 |
Chloroform 2/a |
2 - 10 ppm (5 tests per box) |
6718601 |
Chloroformates 0.2/b |
0.2 - 10 ppm |
8103421 |
Chloropicrin 0.1/a |
0.1 - 2 ppm |
6718901 |
Chloroprene 5/a |
5 - 60 ppm |
6728681 |
Chromic Acid 0.1/a |
0.1 - 0.5 mg/m³ (9 tests / box) |
6728791 |
Cyanide 2/a |
2 - 15 mg/m³ |
CH19801 |
Cyanogen Chloride 0.25/a |
0.25 - 5 ppm |
6725201 |
Cyclohexane 100/a |
100 - 1,500 ppm |
6728931 |
Cyclohexylamine 2/a |
2 - 30 ppm |
8103475 |
Diesel Fuel |
25 - 200 mg/m3 |
6730501 |
Diethyl Ether 100/a |
100 - 4,000 ppm |
6718501 |
Dimethyl Formamide 10/b |
10 - 40 ppm |
6718701 |
Dimethyl Sulfate 0.005/c |
0.005 - 0.05 ppm (9 tests per box) |
6728451 |
Dimethyl Sulfide 1/a |
1 - 15 ppm (5 tests per box) |
6728111 |
Epichlorohydrin 5/b |
5 - 50 ppm |
CH20201 |
Ethyl Acetate 200/a |
200 - 3,000 ppm |
6728381 |
Ethyl Benzene 30/a |
30 - 100% ppm |
8101331 |
Ethylene 0.1/a |
0.2 - 5 ppm (5 tests per box) |
6728051 |
Ethylene 50/a |
50 - 2,500 ppm |
8101351 |
Ethylene Glycol 10 |
10 - 180 mg/m3 (5 tests per box) |
6728961 |
Ethylene Oxide 1/a |
1 - 15 ppm (5 tests per box) |
6728241 |
Ethylene Oxide 25/a |
25 - 500 ppm |
8103541 |
Ethyl Formate 20/a |
20 - 500 ppm |
6726801 |
Ethyl Glycol Acetate 50/a |
50 - 700 ppm |
8101491 |
Fluorine 0.1/a |
0.1 - 2 ppm |
8101141 |
Formaldehyde Activation Tube |
Use with HCHO 0.2/a – to extend Measuring Range to 0.04 ppm |
6733081 |
Formaldehyde 0.2/a |
0.2 - 5 ppm |
8101751 |
Formaldehyde 2/a |
2 - 40 ppm |
6722701 |
Formic Acid 1/a |
1 - 15 ppm |
8101601 |
Halogenated Hydrocarbons 100/a |
200 - 2,800 ppm (8 tests per box) |
6728391 |
Hexane 100/a |
50 - 3,000 ppm |
8103351 |
Hydrazine 0.01/a |
0.01 - 6 ppm |
CH31801 |
Hydrazine 0.25/a |
0.1 - 10 ppm |
8103625 |
Hydrocarbons0.1%/c |
0.5 - 1.3 Vol.% (Propane) (Replaces CH26101) |
8103581 |
Hydrocarbons 2 |
3 - 23 mg/l (Replaces: CH25401) |
8103481 |
Hydrochloric Acid 0.2/a |
0.2 - 20 ppm |
CH29501 |
Hydrochloric Acid 1/a |
1 - 10 ppm |
6728181 |
Hydrochloric Acid 50/a |
50 - 5,000 ppm |
8101681 |
Hydrochloric Acid/Nitric Acid 1/a |
1 - 10 ppm HCl / 1 - 15 ppm HNO3 |
8103601 |
Hydrocyanic Acid 0.5/a |
.05- 50ppm (Replaces CH25701) |
8101511 |
Hydrogen 0.2%/a |
0.2 - 2 Vol.% |
8103251 |
Hydrogen Fluoride 0.5/a |
0.5 - 90 ppm |
CH30301 |
Hydrogen Fluoride 1.5/b |
1.5 - 15 ppm |
8101041 |
Hydrogen Peroxide 0.1/a |
0.1 - 3 ppm |
8101461 |
Hydrogen Sulfide 0.2/a |
0.2 - 5 ppm |
8101991 |
Hydrogen Sulfide 0.2/b |
0.2 - 6 ppm |
6728041 |
Hydrogen Sulfide 0.5/a |
0.5 - 15 ppm |
8101831 |
Hydrogen Sulfide 1/d |
1 - 200 ppm |
6728821 |
Hydrogen Sulfide 2/a |
2 - 200 ppm |
8101961 |
Hydrogen Sulfide 2/b |
2 - 60 ppm |
CH29801 |
Hydrogen Sulfide 5/b |
5 - 60 ppm |
CH29101 |
Hydrogen Sulfide 100/a |
100 - 2,000 ppm |
CH28101 |
Hydrogen Sulfide 0.2%/A |
0.2 - 7 Vol.% |
8101211 |
Hydrogen Sulfide 2%/a |
2 - 40 Vol.% |
CH28201 |
Hydrogen Sulfide + Sulfur Dioxide 0.2%/a |
0.02 - 7 Vol.% |
8103521 |
Iodine 0.1/a |
0.1 - 5 ppm |
6733031 |
Oil Mist 1/a |
1 - 10 mg/m³ |
6728378 |
Oil 10/a-P |
0.1 - 10 mg/m³ |
CH31201 |
Olefins 0.05%/a (Propylene, Butylene) |
0.06 - 3.2 Vol.%, 0.04 - 2.4 Vol.% |
CH26303 |
Organic Arsenic Compounds & Arsine |
3 mg org. arsenic/m³ |
CH25903 |
Organic Basic Nitrogen Compounds |
1 mg/m³ |
8103261 |
Oxygen 5%/C |
5 - 23 Vol.% |
6733181 |
Ozone 0.05/b |
0.05 - 1.4 ppm |
CH21001 |
Ozone10/a |
10 - 300 ppm, (9 tests per box) |
6724701 |
Pentane 100/a |
100 - 1,500 ppm |
8101551 |
Perchloroethylene 0.1/a |
0.1 - 4 ppm |
8101501 |
Perchloroethylene 2/a |
2 - 300 ppm |
CH30701 |
Perchloroethylene 10/b |
10 - 500 ppm |
8101691 |
Petroleum Hydrocarbons 10/a |
10 - 300 ppm |
6730201 |
Petroleum Hydrocarbons 100/a |
100 - 2,500 ppm |
8101641 |
Phenol 1/b |
1 - 20 ppm |
8101521 |
Phosgene 0.02/a |
0.02 - 1 ppm |
CH28301 |
Phosgene 0.25/c |
0.25 - 25 ppm |
8101611 |
Phosphine 0.01/a |
0.01 - 1.0 ppm |
CH31101 |
Phosphine 0.1/a (replaced by 8103711) |
0.1 - 4 ppm (replaced by 8103711) |
8103711 |
Phosphine 0.1/c (replaces CH31101) |
0.1 - 3 ppm (replaces CH31101) |
8103341 |
Phosphine 0.1/b in acetylene |
0.1 - 15 ppm |
8101621 |
Phosphine 25/A |
25 - 10,000 ppm |
CH21201 |
Phosphine 50/a |
15 - 1,000 ppm |
6728461 |
Phosphoric Acid Esters 0.05/a |
0.05 ppm |
CH28401 |
Polytest |
Qualitative |
6728651 |
Pyridine 5/A |
5 ppm |
6787801 |
Sulfur Dioxide 0.1/a |
0.1 - 3 ppm |
6728491 |
Sulfur Dioxide 0.5/a |
0.5 - 25 ppm |
CH31701 |
Sulfur Dioxide 1/a |
1 - 25 ppm |
CH24201 |
Sulfur Dioxide 20/a |
20 - 2,000 ppm |
8101531 |
Sulfur Dioxide 50/b |
50 - 8,000 ppm |
6788781 |
Sulfuric Acid 1/a |
1 - 5 mg/m³ (9 tests per box) |
8103478 |
7 Sulfuryl Fluoride 1/a |
1 - 5 ppm (5 tests per box) |
8101341 |
Tetrahydrothiophene 1/b |
1 - 10 ppm (5 tests per box) |
CH25803 |
Thioether |
1 mg/m³ |
8101661 |
Toluene 5/b |
5 - 300 ppm |
8101701 |
Toluene 50/a |
50 - 400 ppm |
8101731 |
Toluene 100/a |
100 - 1,800 ppm |
6784501 |
Toluene Diisocyanate 0.02/A |
0.02 - 0.2 ppm (9 tests per box) |
CH21101 |
Trichloroethane 50/d |
50 - 600 ppm (5 tests per box) |
6788541 |
Trichloroethylene 2/a |
2 - 250 ppm |
8101881 |
Trichloroethylene 50/a |
50 - 2,000 ppm |
6718401 |
Triethylamine 5/a |
5 - 60 ppm |
8101721 |
Vinyl Chloride 0.5/b |
0.5 - 30 ppm |
CH19601 |
Vinyl Chloride 100/a |
100 - 3,000 ppm |
CH23401 |
Water Vapor 0.1 |
1 - 40 mg/l |
8101321 |
Water Vapor 0.1/a |
0.05 - 1 mg/l |
8101781 |
Water Vapor 1/b |
1 - 40 mg/l |
8103031 |
Water Vapor 3/a |
3 - 60 lbs/mmcf |
6783161 |
Xylene 10/a |
10 - 400 ppm |
|
|
|
