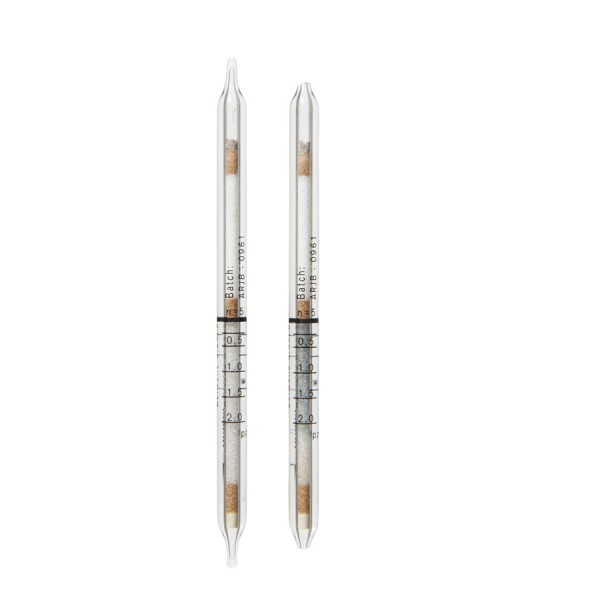

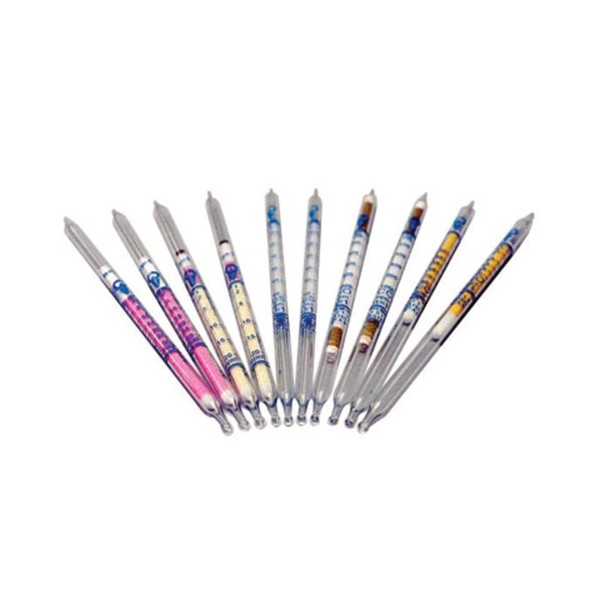

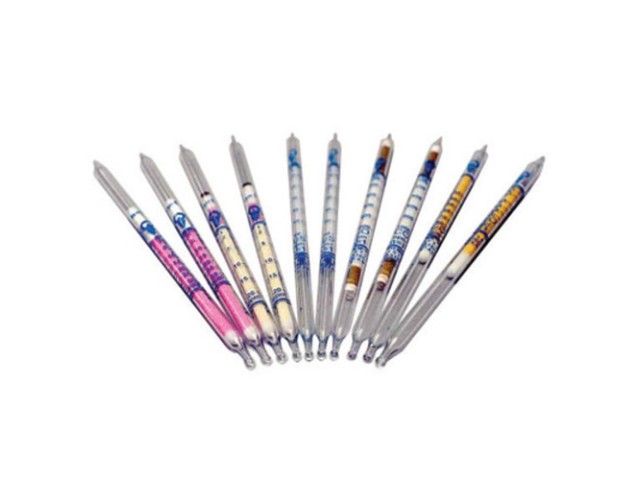

Dräger stekleno zaprta cevčica, napolnjena s kemičnim reagentom, ki reagira na določen plin ali hlape z značilno spremembo barve. Da bi povzročili to reakcijo, skozi cevčico s pomočjo ustreznih črpalk prečrpamo točno določen volumen zraka. Tudi majhne količine plina zadostujejo, uporabnik pa lahko rezultat preprosto prebere in analizira zaradi oznak lestvice, ki so natisnjene na cevčici.
- zagotavlja hiter in zanesljiv rezultat merjenja
- so enostavne za uporabo, tudi z zaščitnimi rokavicami
- meritve lahko izvajamo z napravami, ki ne potrebujejo električnega napajanja
- pred meritvijo ni potrebnih umerjanj, prav tako ni potrebnega nobenega vzdrževanja
ŠT. IZDELKA |
DRÄGER CEVČICA |
RAZPON MERJENJA KONCENTRACIJE |
6726665 |
Acetaldehyde 100/a |
100 - 1,000 ppm |
6722101 |
Acetic Acid 5/a |
5 - 80 ppm |
8103381 |
Acetone 40/a |
40 - 800 ppm (5 tests per box) |
CH22901 |
Acetone 100/b |
100 - 12,000 ppm |
8101121 |
Acid Test |
Qualitative |
6728591 |
Acrylonitrile 0.5/a |
0.5 - 20 ppm (5 tests per box) |
CH25301 |
Air Current (Smoke Tubes) |
N/A |
8101631 |
Alcohol 25/a |
25 - 5,000 ppm |
CH29701 |
Alcohol 100/a |
100 - 3,000 ppm |
8101061 |
Amine Test |
Qualitative |
8101711 |
Ammonia 0.25/a |
0.25 - 3 ppm |
6733231 |
Ammonia 2/a |
2 - 30 ppm |
CH20501 |
Ammonia 5/a |
5 - 700 ppm (SEI Certified) |
8101941 |
Ammonia 5/b |
2.5 - 100 ppm |
CH31901 |
Ammonia 0.5%/a |
0.05 - 10 Vol.% |
6733171 |
Aniline 0.5/a |
0.5 - 10 ppm |
CH20401 |
Aniline 5/a |
1 - 20 ppm |
CH25001 |
Arsine 0.05/a |
0.05 - 60 ppm |
6728561 |
Benzene 0.5/a |
0.5 - 10 ppm |
8101841 |
Benzene 0.5/c (Specific) |
0.5 - 10 ppm (5 tests per box) |
8101231 |
Benzene 2/a |
2 - 60 ppm (5 tests per box) |
6728071 |
Benzene 5/b |
5 - 50 ppm |
8101741 |
Benzene 15/a |
15 - 420 ppm |
8101811 |
Carbon Dioxide 100/a |
100 - 3,000 ppm |
CH23501 |
Carbon Dioxide 0.1%/a |
0.1 - 6 Vol.% (SEI Certified) |
8101051 |
Carbon Dioxide 1% / a-D |
1 - 30 Vol.% x h |
CH31401 |
Carbon Dioxide 0.5%/a |
0.5 - 10 Vol.% |
CH25101 |
Carbon Dioxide 1%/a |
1 - 20 Vol.% |
CH20301 |
Carbon Dioxide 5%/A |
5 - 60 Vol.% |
8101891 |
Carbon Disulfide 3/a |
3 - 95 ppm |
CH23201 |
Carbon Disulfide 30/a |
32 - 3,200 ppm |
6733051 |
Carbon Monoxide 2/a |
2 - 300 ppm |
CH25601 |
Carbon Monoxide 5/c |
5 - 700 ppm (SEI Certified) |
CH19701 |
Carbon Monoxide 8/a |
8 - 150 ppm |
CH20601 |
Carbon Monoxide 10/b |
10 - 3,000 ppm |
CH29901 |
Carbon Monoxide 0.3%/b |
0.3 - 7 Vol% |
CH24101 |
Carbon Pretube |
N/A |
8103501 |
Carbon Tetrachloride 0.1/a |
0.1 - 5 ppm |
8101021 |
Carbon Tetrachloride 1/a |
1 - 15 ppm (5 tests per box) |
CH27401 |
Carbon Tetrachloride 5/c |
5 - 50 ppm |
CH24301 |
Chlorine 0.2/a |
0.2 - 30 ppm |
6728411 |
Chlorine 0.3/b |
0.3 - 10 ppm |
CH20701 |
Chlorine 50/a |
50 - 500 ppm |
8103491 |
Chlorine Dioxide 0.025/a |
0.025 - 3 ppm |
6728761 |
Chlorobenzene 5/a |
5 - 200 ppm (5 tests per box) |
6728861 |
Chloroform 2/a |
2 - 10 ppm (5 tests per box) |
6718601 |
Chloroformates 0.2/b |
0.2 - 10 ppm |
8103421 |
Chloropicrin 0.1/a |
0.1 - 2 ppm |
6718901 |
Chloroprene 5/a |
5 - 60 ppm |
6728681 |
Chromic Acid 0.1/a |
0.1 - 0.5 mg/m³ (9 tests / box) |
6728791 |
Cyanide 2/a |
2 - 15 mg/m³ |
CH19801 |
Cyanogen Chloride 0.25/a |
0.25 - 5 ppm |
6725201 |
Cyclohexane 100/a |
100 - 1,500 ppm |
6728931 |
Cyclohexylamine 2/a |
2 - 30 ppm |
8103475 |
Diesel Fuel |
25 - 200 mg/m3 |
6730501 |
Diethyl Ether 100/a |
100 - 4,000 ppm |
6718501 |
Dimethyl Formamide 10/b |
10 - 40 ppm |
6718701 |
Dimethyl Sulfate 0.005/c |
0.005 - 0.05 ppm (9 tests per box) |
6728451 |
Dimethyl Sulfide 1/a |
1 - 15 ppm (5 tests per box) |
6728111 |
Epichlorohydrin 5/b |
5 - 50 ppm |
CH20201 |
Ethyl Acetate 200/a |
200 - 3,000 ppm |
6728381 |
Ethyl Benzene 30/a |
30 - 100% ppm |
8101331 |
Ethylene 0.1/a |
0.2 - 5 ppm (5 tests per box) |
6728051 |
Ethylene 50/a |
50 - 2,500 ppm |
8101351 |
Ethylene Glycol 10 |
10 - 180 mg/m3 (5 tests per box) |
6728961 |
Ethylene Oxide 1/a |
1 - 15 ppm (5 tests per box) |
6728241 |
Ethylene Oxide 25/a |
25 - 500 ppm |
8103541 |
Ethyl Formate 20/a |
20 - 500 ppm |
6726801 |
Ethyl Glycol Acetate 50/a |
50 - 700 ppm |
8101491 |
Fluorine 0.1/a |
0.1 - 2 ppm |
8101141 |
Formaldehyde Activation Tube |
Use with HCHO 0.2/a – to extend Measuring Range to 0.04 ppm |
6733081 |
Formaldehyde 0.2/a |
0.2 - 5 ppm |
8101751 |
Formaldehyde 2/a |
2 - 40 ppm |
6722701 |
Formic Acid 1/a |
1 - 15 ppm |
8101601 |
Halogenated Hydrocarbons 100/a |
200 - 2,800 ppm (8 tests per box) |
6728391 |
Hexane 100/a |
50 - 3,000 ppm |
8103351 |
Hydrazine 0.01/a |
0.01 - 6 ppm |
CH31801 |
Hydrazine 0.25/a |
0.1 - 10 ppm |
8103625 |
Hydrocarbons0.1%/c |
0.5 - 1.3 Vol.% (Propane) (Replaces CH26101) |
8103581 |
Hydrocarbons 2 |
3 - 23 mg/l (Replaces: CH25401) |
8103481 |
Hydrochloric Acid 0.2/a |
0.2 - 20 ppm |
CH29501 |
Hydrochloric Acid 1/a |
1 - 10 ppm |
6728181 |
Hydrochloric Acid 50/a |
50 - 5,000 ppm |
8101681 |
Hydrochloric Acid/Nitric Acid 1/a |
1 - 10 ppm HCl / 1 - 15 ppm HNO3 |
8103601 |
Hydrocyanic Acid 0.5/a |
.05- 50ppm (Replaces CH25701) |
8101511 |
Hydrogen 0.2%/a |
0.2 - 2 Vol.% |
8103251 |
Hydrogen Fluoride 0.5/a |
0.5 - 90 ppm |
CH30301 |
Hydrogen Fluoride 1.5/b |
1.5 - 15 ppm |
8101041 |
Hydrogen Peroxide 0.1/a |
0.1 - 3 ppm |
8101461 |
Hydrogen Sulfide 0.2/a |
0.2 - 5 ppm |
8101991 |
Hydrogen Sulfide 0.2/b |
0.2 - 6 ppm |
6728041 |
Hydrogen Sulfide 0.5/a |
0.5 - 15 ppm |
8101831 |
Hydrogen Sulfide 1/d |
1 - 200 ppm |
6728821 |
Hydrogen Sulfide 2/a |
2 - 200 ppm |
8101961 |
Hydrogen Sulfide 2/b |
2 - 60 ppm |
CH29801 |
Hydrogen Sulfide 5/b |
5 - 60 ppm |
CH29101 |
Hydrogen Sulfide 100/a |
100 - 2,000 ppm |
CH28101 |
Hydrogen Sulfide 0.2%/A |
0.2 - 7 Vol.% |
8101211 |
Hydrogen Sulfide 2%/a |
2 - 40 Vol.% |
CH28201 |
Hydrogen Sulfide + Sulfur Dioxide 0.2%/a |
0.02 - 7 Vol.% |
8103521 |
Iodine 0.1/a |
0.1 - 5 ppm |
6733031 |
Oil Mist 1/a |
1 - 10 mg/m³ |
6728378 |
Oil 10/a-P |
0.1 - 10 mg/m³ |
CH31201 |
Olefins 0.05%/a (Propylene, Butylene) |
0.06 - 3.2 Vol.%, 0.04 - 2.4 Vol.% |
CH26303 |
Organic Arsenic Compounds & Arsine |
3 mg org. arsenic/m³ |
CH25903 |
Organic Basic Nitrogen Compounds |
1 mg/m³ |
8103261 |
Oxygen 5%/C |
5 - 23 Vol.% |
6733181 |
Ozone 0.05/b |
0.05 - 1.4 ppm |
CH21001 |
Ozone10/a |
10 - 300 ppm, (9 tests per box) |
6724701 |
Pentane 100/a |
100 - 1,500 ppm |
8101551 |
Perchloroethylene 0.1/a |
0.1 - 4 ppm |
8101501 |
Perchloroethylene 2/a |
2 - 300 ppm |
CH30701 |
Perchloroethylene 10/b |
10 - 500 ppm |
8101691 |
Petroleum Hydrocarbons 10/a |
10 - 300 ppm |
6730201 |
Petroleum Hydrocarbons 100/a |
100 - 2,500 ppm |
8101641 |
Phenol 1/b |
1 - 20 ppm |
8101521 |
Phosgene 0.02/a |
0.02 - 1 ppm |
CH28301 |
Phosgene 0.25/c |
0.25 - 25 ppm |
8101611 |
Phosphine 0.01/a |
0.01 - 1.0 ppm |
CH31101 |
Phosphine 0.1/a (replaced by 8103711) |
0.1 - 4 ppm (replaced by 8103711) |
8103711 |
Phosphine 0.1/c (replaces CH31101) |
0.1 - 3 ppm (replaces CH31101) |
8103341 |
Phosphine 0.1/b in acetylene |
0.1 - 15 ppm |
8101621 |
Phosphine 25/A |
25 - 10,000 ppm |
CH21201 |
Phosphine 50/a |
15 - 1,000 ppm |
6728461 |
Phosphoric Acid Esters 0.05/a |
0.05 ppm |
CH28401 |
Polytest |
Qualitative |
6728651 |
Pyridine 5/A |
5 ppm |
6787801 |
Sulfur Dioxide 0.1/a |
0.1 - 3 ppm |
6728491 |
Sulfur Dioxide 0.5/a |
0.5 - 25 ppm |
CH31701 |
Sulfur Dioxide 1/a |
1 - 25 ppm |
CH24201 |
Sulfur Dioxide 20/a |
20 - 2,000 ppm |
8101531 |
Sulfur Dioxide 50/b |
50 - 8,000 ppm |
6788781 |
Sulfuric Acid 1/a |
1 - 5 mg/m³ (9 tests per box) |
8103478 |
7 Sulfuryl Fluoride 1/a |
1 - 5 ppm (5 tests per box) |
8101341 |
Tetrahydrothiophene 1/b |
1 - 10 ppm (5 tests per box) |
CH25803 |
Thioether |
1 mg/m³ |
8101661 |
Toluene 5/b |
5 - 300 ppm |
8101701 |
Toluene 50/a |
50 - 400 ppm |
8101731 |
Toluene 100/a |
100 - 1,800 ppm |
6784501 |
Toluene Diisocyanate 0.02/A |
0.02 - 0.2 ppm (9 tests per box) |
CH21101 |
Trichloroethane 50/d |
50 - 600 ppm (5 tests per box) |
6788541 |
Trichloroethylene 2/a |
2 - 250 ppm |
8101881 |
Trichloroethylene 50/a |
50 - 2,000 ppm |
6718401 |
Triethylamine 5/a |
5 - 60 ppm |
8101721 |
Vinyl Chloride 0.5/b |
0.5 - 30 ppm |
CH19601 |
Vinyl Chloride 100/a |
100 - 3,000 ppm |
CH23401 |
Water Vapor 0.1 |
1 - 40 mg/l |
8101321 |
Water Vapor 0.1/a |
0.05 - 1 mg/l |
8101781 |
Water Vapor 1/b |
1 - 40 mg/l |
8103031 |
Water Vapor 3/a |
3 - 60 lbs/mmcf |
6783161 |
Xylene 10/a |
10 - 400 ppm |
